ABS plastic is a thermoplastic blend which combines the strength and rigidity of acrylonitrile and styrene polymers with the ruggedness of polybutadiene rubber. Because ABS plastic is chemical and heat-resistant and offers good protection against dents, it’s widely used by automobile man¬ufacturers as original equipment for trim, bumper covers, and body panels. Like polyurethane, ABS plastic is more expensive and heavier than fiberglass. However, it also offers fit and finish that’s superior to fiberglass. ABS plastic is less flexible than polyurethane, but it’s a very easy surface to apply paint on.
Part No IM1900S-D-Max
- D-Max package
- Door cladding
- Fender flares
- Front skirt with LED daytime running lights
- Lower side skirt colour matched
Part No IM1900S-MU-X
- MU-X ABS body package
- Door cladding
- Fender flares
- Front skirt colour matched with LED daytime running lights
Bull Bar (Winch Bar)
All winch bars feature 3-piece underbody protection, spot light mounting, 3 aerial mounts, hi-lift jack mounting provision, increased air intake, LED indicator park lights, fog lights, recessed winch mounting provision, ADR approval, polyurethane over-riders and a winch cut out cover plate. Bars are finished in black onyx smooth, shiny metallic powder coat.
Part No IM1929 – D-Max 3 loop winch bar
Part No IM1933 – MU-X 3 loop winch bar
Part No IM1932 – D-Max Straight top winch bar
Part No IM1936 – MU-X Straight top winch bar
Electrical Accelerator Plus
IM Accelerator plus is a throttle response controller that removes response delays on your electronic accelerator pedal. Effectively it allows your engine to respond faster so your car can accelerate faster! You paid lots of money for a serious vehicle. When you press your gas pedal it shouldn’t feel like you are pressing a sponge. Have you ever noticed that older cars tend to be more responsive before digital pedals? We’re giving you that response back!
IM Throttle Controller has 9 different control modes to provide drivers with unique acceleration control in their vehicles.
Part No IM1957-01
Electrical IM Gauge
A comprehensive gauge featuring:
ECT=Engine coolant temperature(Celsius),
CRP=Common rail pressure,
TBP Turbo boost pressure(psi),
EGR= Exhaust gas recirculation(%),
BAT= Battery voltage(Volt),
MAP= Manifold absolute pressure(psi),
MAF=Mass air flow(g/s),
SPD= Speed (km/h),
TPS= Throttle position sensor(5%) LOAD=Engine load(%)
Can set up automatic clearing DTC
Alarm mode set up:
Engine coolant temperature digital feedback is an excellent feature because the on-dash sensor is not accurate especially during heavy towing, sand driving and generally forgetting to check temperature gauge. Engine RPM, stop engine over revving Speed Alarm can also set up.
Part No IM1956-01
Electronic Control Module (ECM)
Developed from our racing back ground the IM ECM is a programmed electronic microprocessor controlled device. This module is a "State of the Art" 32 bit microprocessor which works by optimizing fuel volume, fuel timing and fuel pressure. This process enhances the diesel engine’s performance by careful interplay of these values and characteristics, resulting in optimum performance. This unit simply plugs in line on your common rail injection system within the engine bay of the vehicle.
The IM digital diesel tuning system is not a "replacement chip" where your ECU is physically opened and its original chip replaced (thus immediately invalidating your vehicle warranty) nor is it a "remap" whose settings can be detected and even deleted during routine servicing. The IM digital Box is plug-in digital tuning system with an additional sophisticated microprocessor controlled tuning chip which will give you substantial, immediate performance and fuel consumption gains.
Part No IM1908C-01
Shock Absorber - IM 35mm Bore Adjustable Gas Shocks
IM 35mm bore adjustable shocks are built with a 16mm shaft. They are designed with a control knob at the bot¬tom allowing you to adjust your ride according to your needs. Each has nine different knob adjustment settings for you to choose depending on your needs. This special feature of this adjustable shock also allows you to control the amount of handling you need for the shock to work in different road conditions and different weight loads.
Part No IM1906F-10 D-Max/MU-X Front 4 step shock pair
Part No IM1907R-10 D-Max Rear 4 step shock pair
Part No IM1906R-10 MU-X Rear 4 step shock pair
Shock Absorber – IM external canister high performance Shock Absorbers
The shocks feature an 8-adjustment race proven 46mm bore with a 52mm outer case finished in a beautiful plat¬ing finish. With our racing back ground IM has even gone the extra step and incorporated the best seal on the market. The piston is the digressive style that will give you an excellent low speed bleed and helps flow the high speed and low speed together extreme¬ly well. Unlike most shock manufacturers IM has gone further and incorporated the best materials into their shocks.
We have even used a solid S45C center less ground bar for the piston rod to ensure the super strong shaft can handle anything you can dish out and to finish off an already great part we have flash chromed it all to ensure extra-long seal and shaft life!
- The remote reservoir has a 52mm case chrome finished with the 46mm bore also incorporating the Teflon piston wear band.
- An ultra-high pressure rubber line covered in chrome braid for added strength and durability.
- For the owner of these awesome shocks a Schrader valve has been fitted to enable the easy re gassing of the shock if ever needed.
- IM shocks are fully serviceable, re-buildable, and tunable
Part No IM1906F-02 D-Max/MU-X Front 46mm bore, 200mm rod, 8 step shock pair
Part No IM1907R-02 D-Max Rear 46mm bore, 200mm rod, 8 step shock pair
Part No IM1906R-02 MU-X Rear 46mm bore, 200mm rod, 8 step shock pair
D-Max and MU-X 76mm black onyx (shiny, smooth, metallic finish) 76mm Nudge Bar with mounting provisin for LED light bar and two spot lights or aerials.
Part No IM1920-01 D-Max
Part No IM1920-02 MU-X

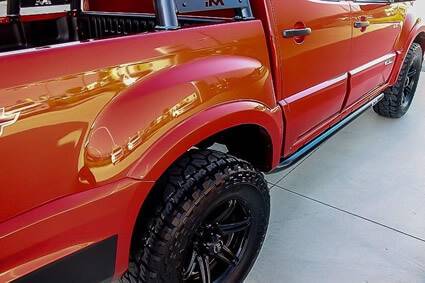

Rock Sliders (Slide Skirt)
IM Rock Slider/Side Skirt portectors are porduced from 76mm x 4mm steel tube in our black onyx (shiny, smooth, metallic finish). With three chassis mounts to each side the proucts are strong, attractive and durable offering full side skirt protection.
Part No IM1938-01 D-Max
Part No IM193-01 MU-X
Silicone Hose Kit
MU-X and D-Max high grade red silicone hose intercooler and radiator full hose set. It is a well-proven fact that silicone hoses are stronger, tougher and more flexible than ordinary rubber hoses. IM Silicone Hoses are manufactured from a high-grade silicone and offer superior temperature resistance which makes them ideal for cooling and charged-air applications. They will last longer, perform better and will not deform under extreme conditions. All lM Silicone Hoses are pressure rated to 220psi, temperature rated to 180 degrees celsius.
Part No IMCXSU898
The IM snorkel is tough and stylish and has been designed and tested to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of the D-Max and MU-X. The snorkel has a unique designed air intake. Our racing experience has made this for super sleek design.
Part No IMRD800
IM Sports exhaust was developed from Motorsports Back¬ground Circuit Race, Outback Dakar Rally and Australian Safari Off Road Rally. Our development partners HKS (best Japanese tuning parts company) build our early IM spec sports exhaust system creating a pleasant sound and adding extra horsepower.
High quality stainless steel grade 304 is utilized to produce exhaust tips, silencers and pipes. SUS304 is highly durable and is tested in all kinds of motorsports, SUS304 is resistant to corrosion, and the highly polished finish to the pipes made of SUS304 provides a very high quality appearance.
A 100mm tip, 60mm pipe and 300mm silencer creates the best combination for the D-Max turbo diesel engine. 'The larger the pipe the better' is not the answer for this motor. lf too big, then too much low end torque is lost. lf too small, horsepower up top is lost.
Part No lM1905E-02- D-Max
Part No IM1904E-02 - MU-X
All IM towbars have a powder coated receiver hitch design able to accommodate most brands of weight distribution products. D-Max towbars feature twin recovery points in direct line with the chassis mount for maximum perfor¬mance. We recommend using them jointly so that the recovery load is spread evenly across the two points.
Part No IM1925 D-Max with factory rear step - 3,500kgs braked towing rated
Part No IM1926 D-Max without factory rear step - 3,500kgs braked towing rated
Part No IM1927 MU-X 3,000kgs braked towing rated
Our IM full underbody armour is easy "no drilling" installation with maintanance points included with the design. Products are crash tested and certified and the pressed design results in the best possible fitment for ground clearance and strength. Our aluminium kit is 100% corrosion resistant and three times lighter than steel.
Part No IM1954A-01 D-Max & MU-X 6mm pressed aluminium - 4piece full underbdy kit
Part No IM1953S-01 D-Max & MU-X 3mm pressed steel - 4piece full underbdy kit
Vehicle Badge - Chrome
IM chrome vehicle badge 122mm x 26mm
Part No IMIMVB-01
Vehicle Badge – Resin Carbon
IM self-adhesive UV stable resin carbon look vehicle badge 150mm X 75mm
Part No IMVB-02
D-Max 76mm black onyx (shiny, smooth, metallic finish) Rear Sports Bar - twin tube, knock down design with logo side plate and provision for light fitment on top.
Part No IM1910-01
Springs - Coil
IM coil and leaf springs are designed and manufactured in Australia. The latest coil spring design programs and feedback from our racing activity will ensure each spring will meet and exceed the design requirements and achieve the maximum working life.
Part No IM1943-01 D-Max/MU-X Front Standard Load 40mm lift
Part No IM1944-01 D-Max/MU-X Front Heavy Load 40mm lift (winch car + winch)
Part No IM1945-01 MU-X Rear Standard load 40mm lift
Springs - Leaf
Suitable for D-Max rear suspension
Part No IM1940-01 40-50mm, up to 100kg load.
Part No IM1941-01 40-50 lift, 250kg constant load.
Part No IM1942-01 40-50mm, 400 constant load
MU-X/D-Max dual cab printed dark acrylic slim window visors - set of four per pack
Part No IM1916M-01 P - D-Max
Part No IM1912M-01 P - MU-X
